ProbSurface extends single-expiry probability analysis to the full term structure. It calibrates a volatility smile at each listed expiry inside your horizon, interpolates between those pillars, and lets you query densities, CDFs, and quantiles within the calibrated range. The walkthrough below covers the complete workflow from data download to per-maturity slicing.
1

Fetch chain

Pass horizon to sources.fetch_chain to automatically fetch every listed expiry within the requested window. The horizon string uses w for weeks, m for months, and y for years.
import matplotlib.pyplot as plt

from oipd import MarketInputs, ProbSurface, sources

ticker = "PLTR"
chain_surface, snapshot_surface = sources.fetch_chain(
    ticker,
    horizon="12m",  # fetch all expiries within the next 12 months
)
The returned chain_surface is a single DataFrame containing all expiries. The snapshot_surface is a VendorSnapshot with .asof, .underlying_price, and .vendor.
2

MarketInputs

Populate MarketInputs from the snapshot the same way you would for a single expiry.
surface_market = MarketInputs(
    valuation_date=snapshot_surface.asof,
    underlying_price=snapshot_surface.underlying_price,
    risk_free_rate=0.04,
)
3

Fit

ProbSurface.from_chain fits SVI smiles at each expiry and wires up a total-variance interpolator for arbitrary-maturity queries.
surface = ProbSurface.from_chain(chain_surface, surface_market)
By default, the failure_policy is "skip_warn", so individual expiries that fail to calibrate are skipped and recorded as WorkflowWarning events rather than aborting the whole fit. Pass failure_policy="raise" to make the first failure fatal.
4

Fan chart

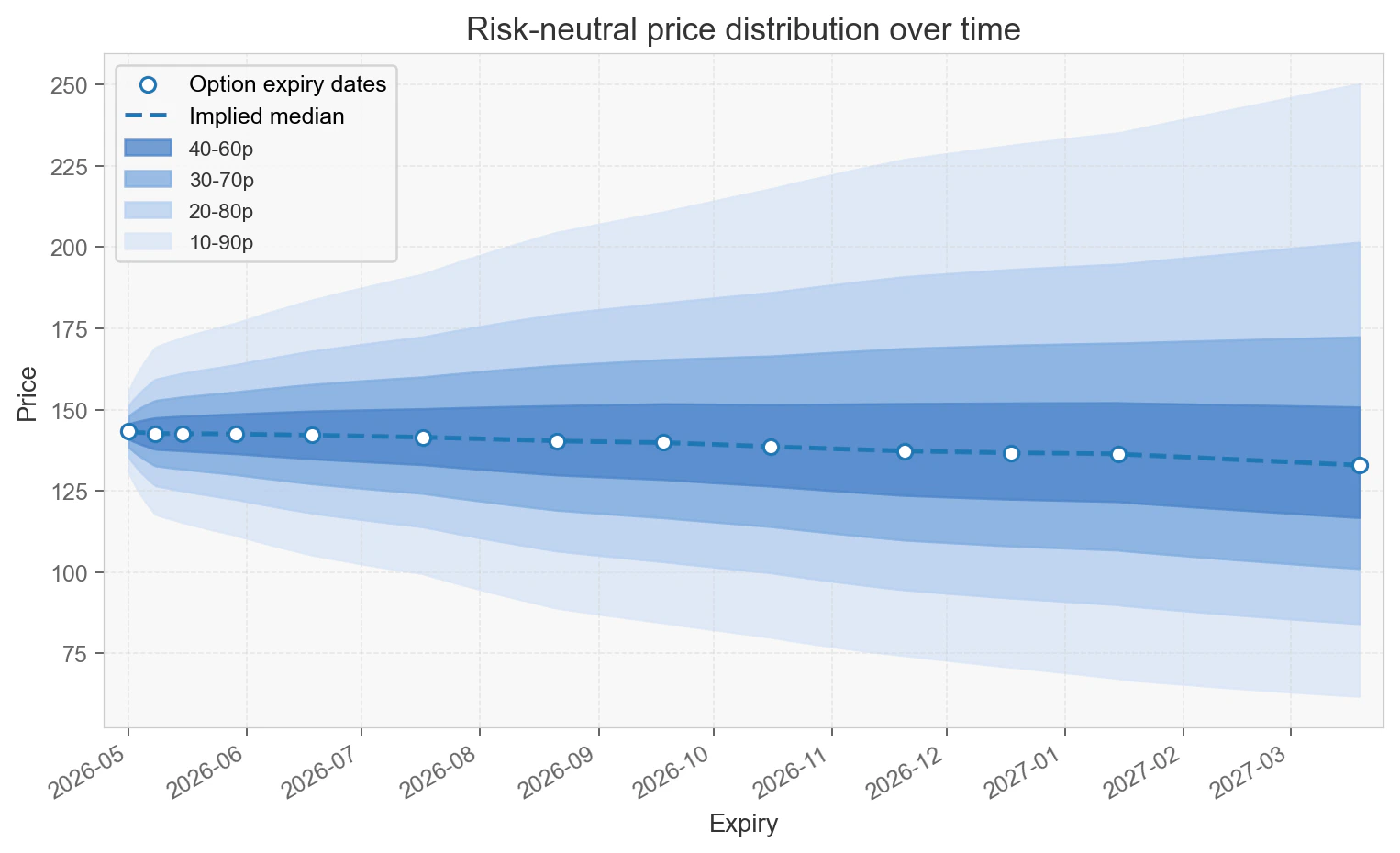

plot_fan draws risk-neutral quantile bands across all fitted maturities, giving you an at-a-glance view of how uncertainty spreads over time.
fig = surface.plot_fan()
plt.show()
Example output:Example ProbSurface fan chart
5

Query

The t parameter accepts a year-fraction float, including decimals, or a date-like value. Both forms work on pdf, cdf, and quantile, as long as the maturity falls within the fitted range.
# Year-fraction float
pdf_45d  = surface.pdf(100, t=45/365)      # density at K=100, 45 calendar days out
q50_45d  = surface.quantile(0.50, t=45/365) # median price at 45 days

# Fractional days work too
t_2_5d = 2.5 / 365
cdf_2_5d = surface.cdf(100, t=t_2_5d)

# Date-like value
cdf_at_expiry = surface.cdf(100, t=surface.expiries[0])
When you pass a date that falls between two fitted expiry pillars, ProbSurface interpolates the volatility surface using a total-variance linear interpolator, then materializes the probability distribution at that synthetic maturity.
6

Slice

List the expiries that were successfully fitted with surface.expiries, then call surface.slice(expiry) to get a ProbCurve at any listed maturity. A sliced ProbCurve supports all the same query methods as one built directly from ProbCurve.from_chain.
print(surface.expiries)               # tuple of pd.Timestamps

curve = surface.slice(surface.expiries[0])
print(curve.prob_below(100))          # P(price < 100)
print(curve.kurtosis())               # excess kurtosis
print(curve.quantile(0.50))           # median
7

Export

density_results returns a long-format DataFrame with columns expiry, price, pdf, and cdf. By default it samples a daily grid between the first and last fitted pillar.
df = surface.density_results()                      # daily grid, all pillars
df_range = surface.density_results(
    start=surface.expiries[0],
    end=surface.expiries[-1],
    step_days=7,                                    # weekly grid
)
print(df_range.head())
Pass step_days=None to export only the exact fitted pillar expiries without interpolation.
ProbSurface.from_chain requires at least two expiries. If your chain contains only one expiry, OIPD raises a CalculationError and asks you to use ProbCurve.from_chain instead. Surface queries are limited to positive maturities up to the last fitted expiry.
